Pre-Engineered Buildings Introduction

Structure of Pre-Engineered Steel Buildings

The primary structure is the key load-bearing component, consisting of:

Steel Columns: Bear vertical and lateral loads, typically made of H-shaped, box, or circular steel sections, anchored to the foundation with anchor bolts.
Steel Rafters: Support the roof’s main load, constructed from fabricated I-beams, H-sections, or space trusses, ensuring rigidity and stability.
Main & Secondary Beams: Distribute roof and floor loads, enhancing the overall structural integrity.

The secondary structure enhances the rigidity and stability of the steel frame, including:

Roof Purlins & Wall Girts: Typically made of C-shaped, Z-shaped, or box steel sections, supporting the roof panels and wall cladding.
Bracing System: Includes roof bracing, column bracing, and wall bracing, ensuring structural stability and wind load resistance.
Staircases & Walkways: Made from checkered steel plates or grating, facilitating safe movement and operation.

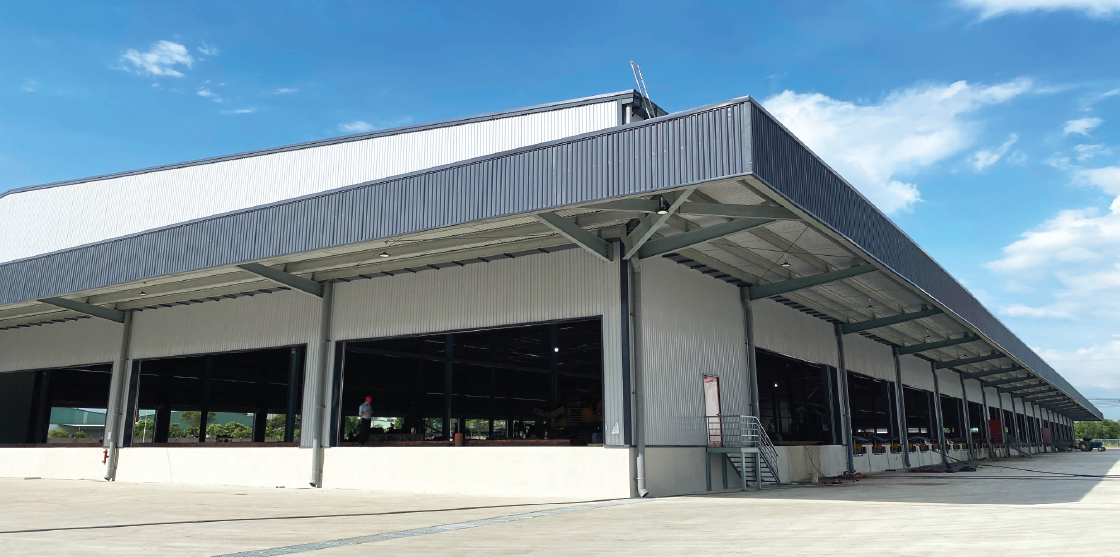

The cladding and finishing system protects the building and enhances aesthetics, including:

Roof & Wall Cladding: Made of galvanized steel sheets, insulated panels, or sandwich panels to provide heat resistance and noise reduction.
Door Systems: Includes entrance doors, windows, and rolling shutters made from steel, aluminum, or other materials.
Protective & Fireproof Coatings: Epoxy, anti-corrosion, and fire-resistant coatings to extend the lifespan of the structure.
Drainage & Auxiliary Systems: Gutters, downpipes, ventilation, and lighting systems for efficient operation.
